Flush Recessed Desk Outlet, 2 Universal Outlets and Network Port, IP44 5A

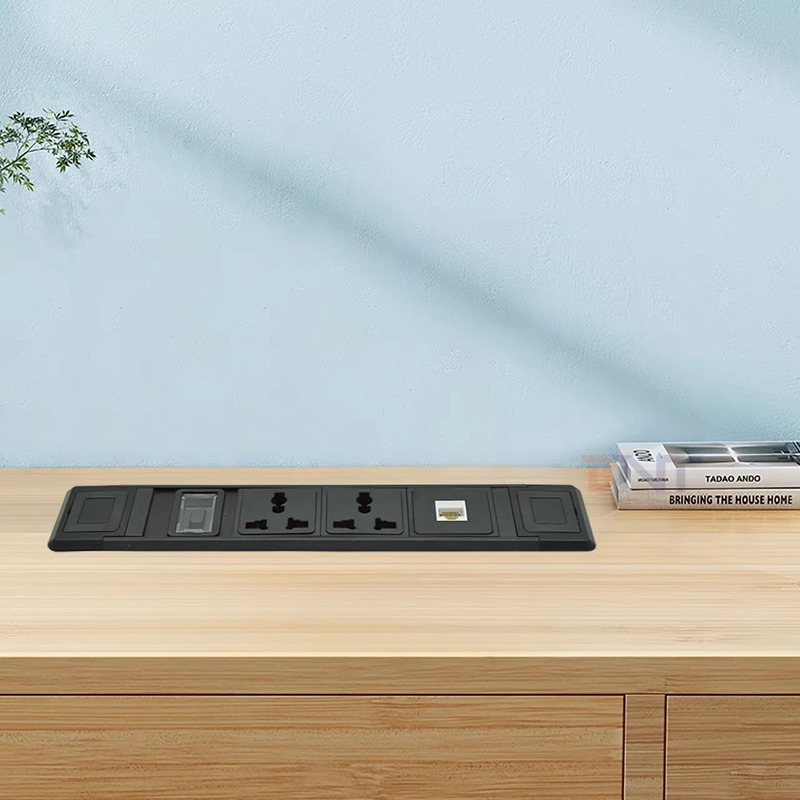

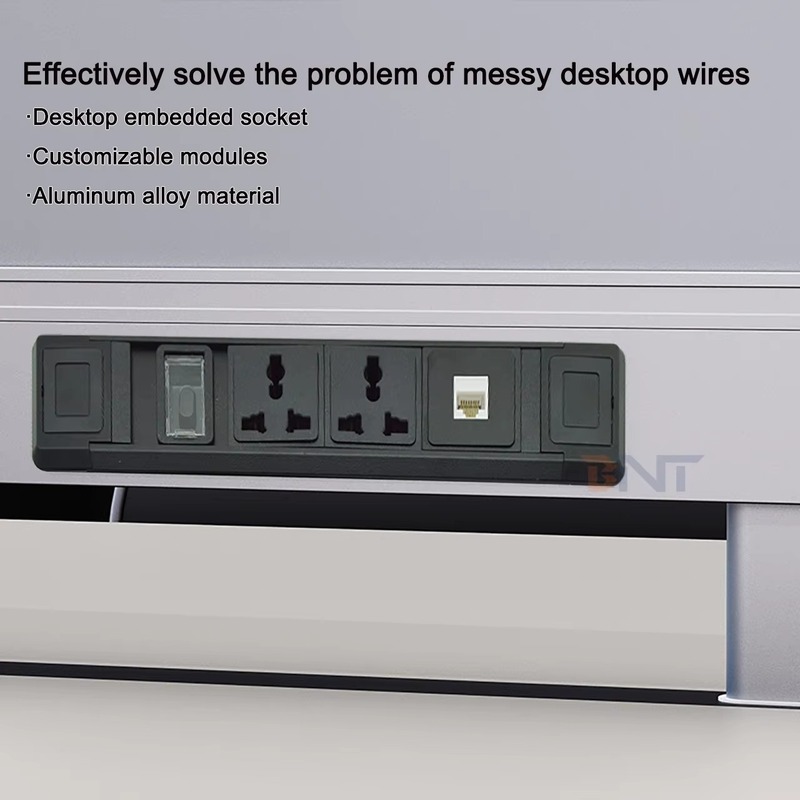

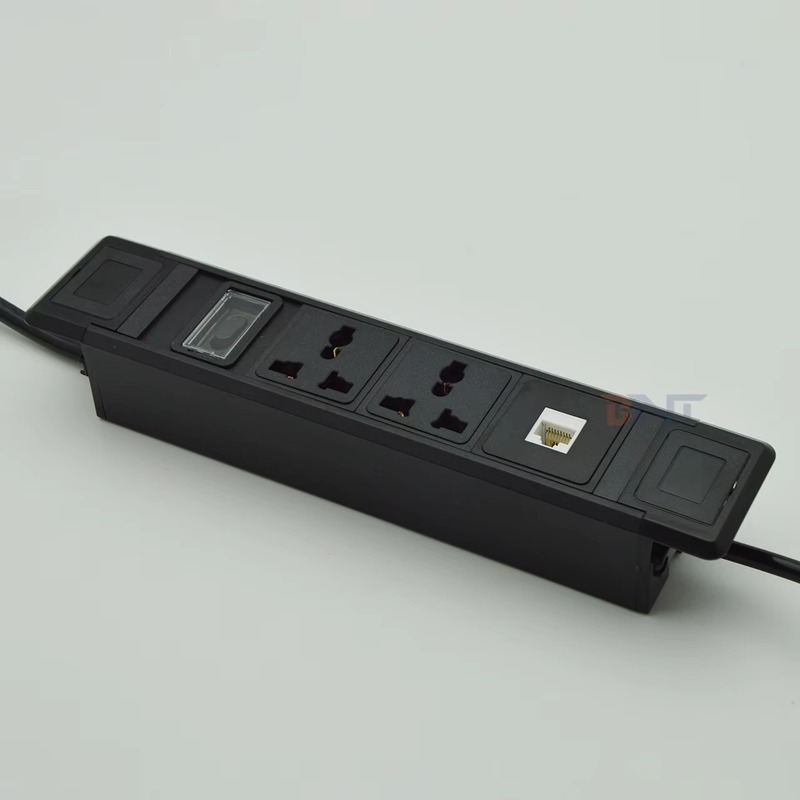

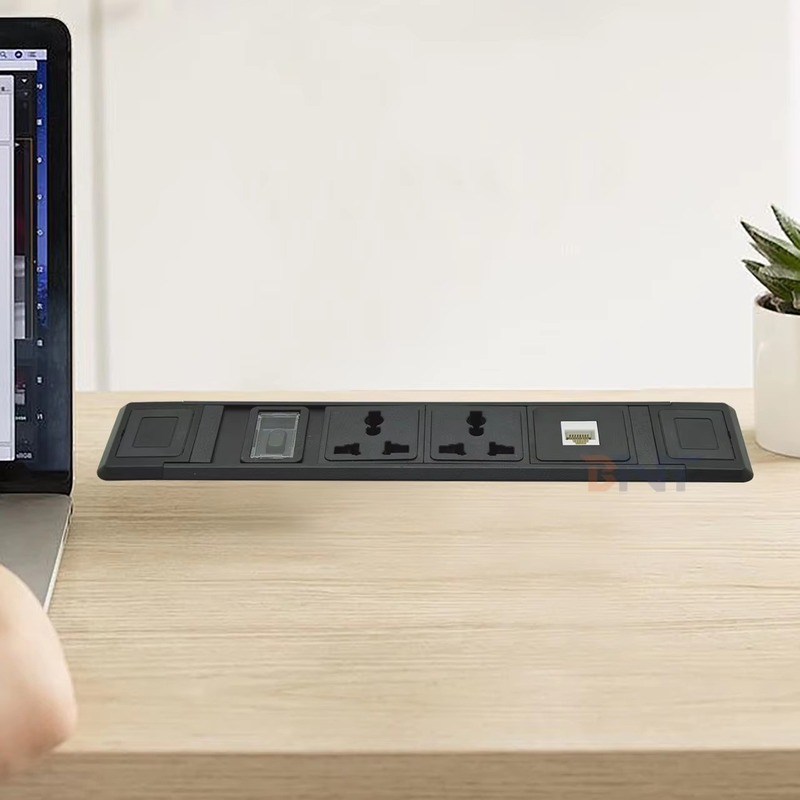

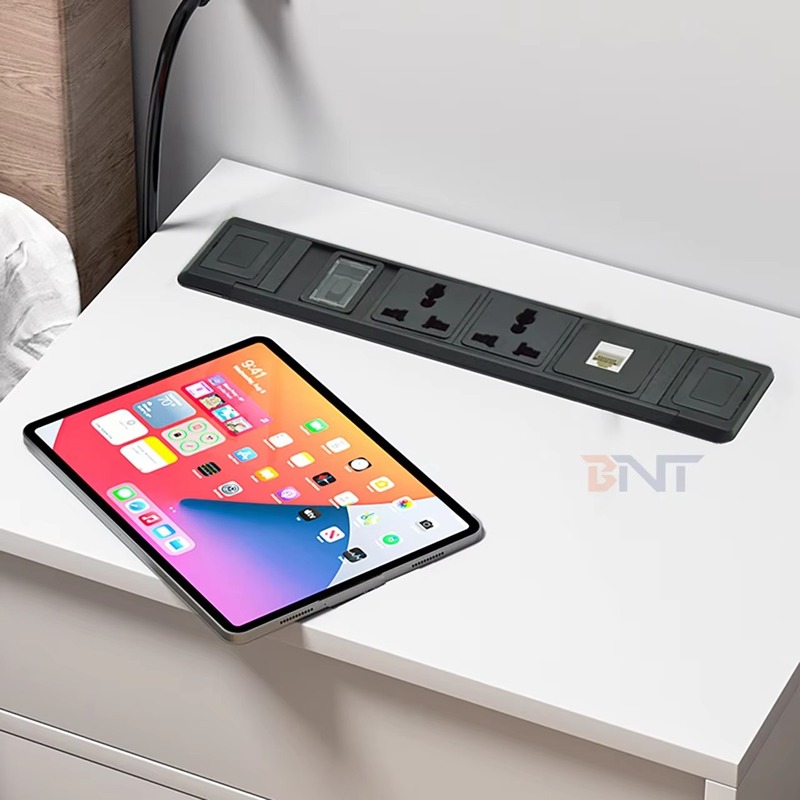

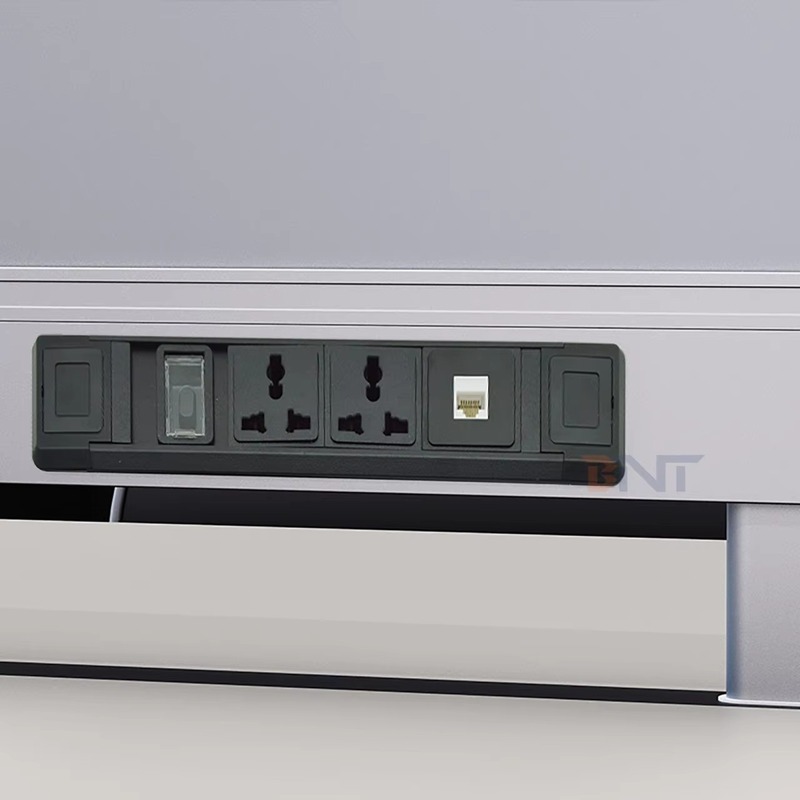

The PTS-301 is a flush recessed outlet that sits level with the surface of an office desk or a furniture panel. Two universal outlets, a network port and a switch share one plate, so a workstation can be wired for power and data at the same point instead of drilling two separate openings.

It is built for the desk itself rather than the wall behind it: the housing drops into a cut-out, the flange sits flat, and the cables exit below the worktop. The result is a desk that can be pushed against a wall or used in the middle of a room without a visible cable run.

What it offers

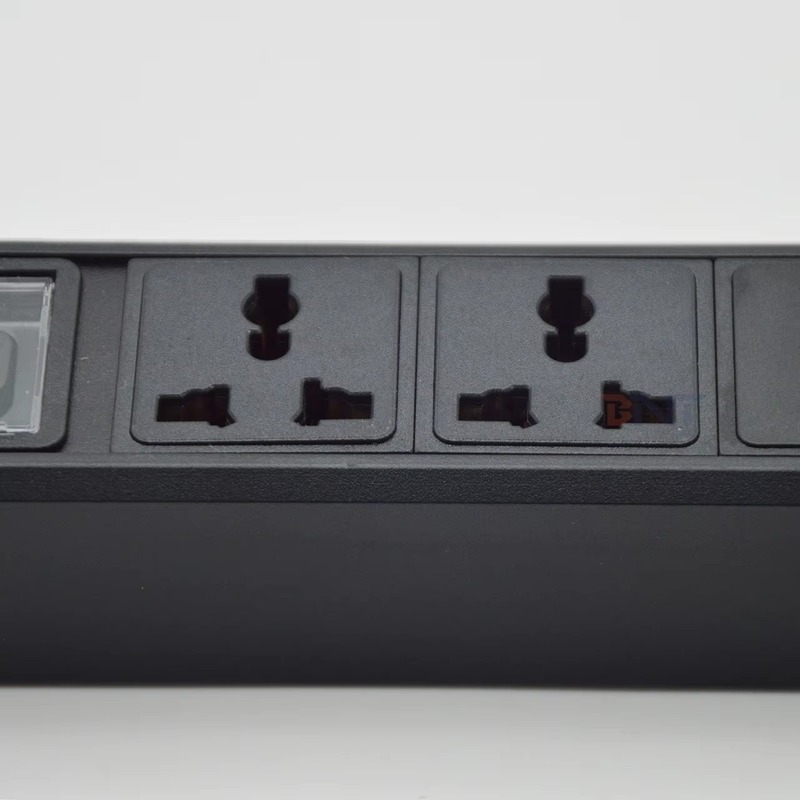

• 2 x universal outlet accepting US, UK and EU plugs, rated 5A at 110~220V.
• 1 x network port on the same plate for desktop data.
• 1 x switch to isolate the outlets without unplugging.
• IP44 protection against dust and splashing water.
• ABS housing with a flat flange that sits flush with the panel.

Where it is used

• Office desks and workstations
• Reception and meeting tables
• Hotel business desks
• Laboratory and workshop benches
• Furniture panels with power and data

Specifications

Frequently asked questions

Does it take standard US plugs?

Yes. The outlets are universal and accept US, UK and EU plugs, rated 5A at 110~220V.

Can it be installed in an existing desk?

Yes, if the panel has enough clear area for the flange and enough depth below for the housing. Cut-out dimensions are supplied with the order.

What is the minimum order?

Please contact our sales team for the current minimum order and lead time for this model.

About BNT

BNT designs and manufactures recessed sockets, pop up outlets and furniture power modules for office fit-out, hospitality and contract furniture projects. Send us your panel or floor drawing, the plug standard for the destination market and the quantity, and we will confirm the configuration and the cut-out drawing.
